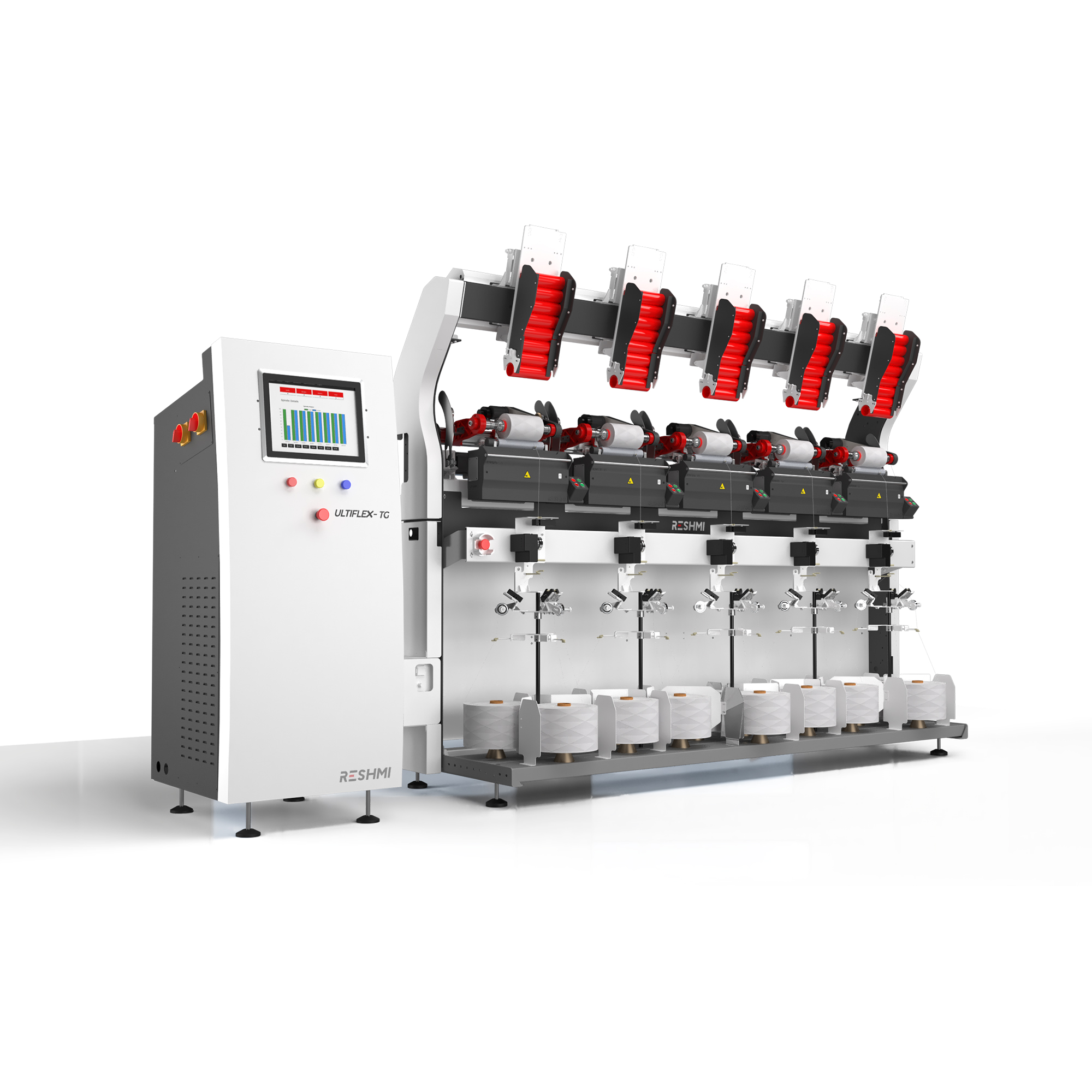

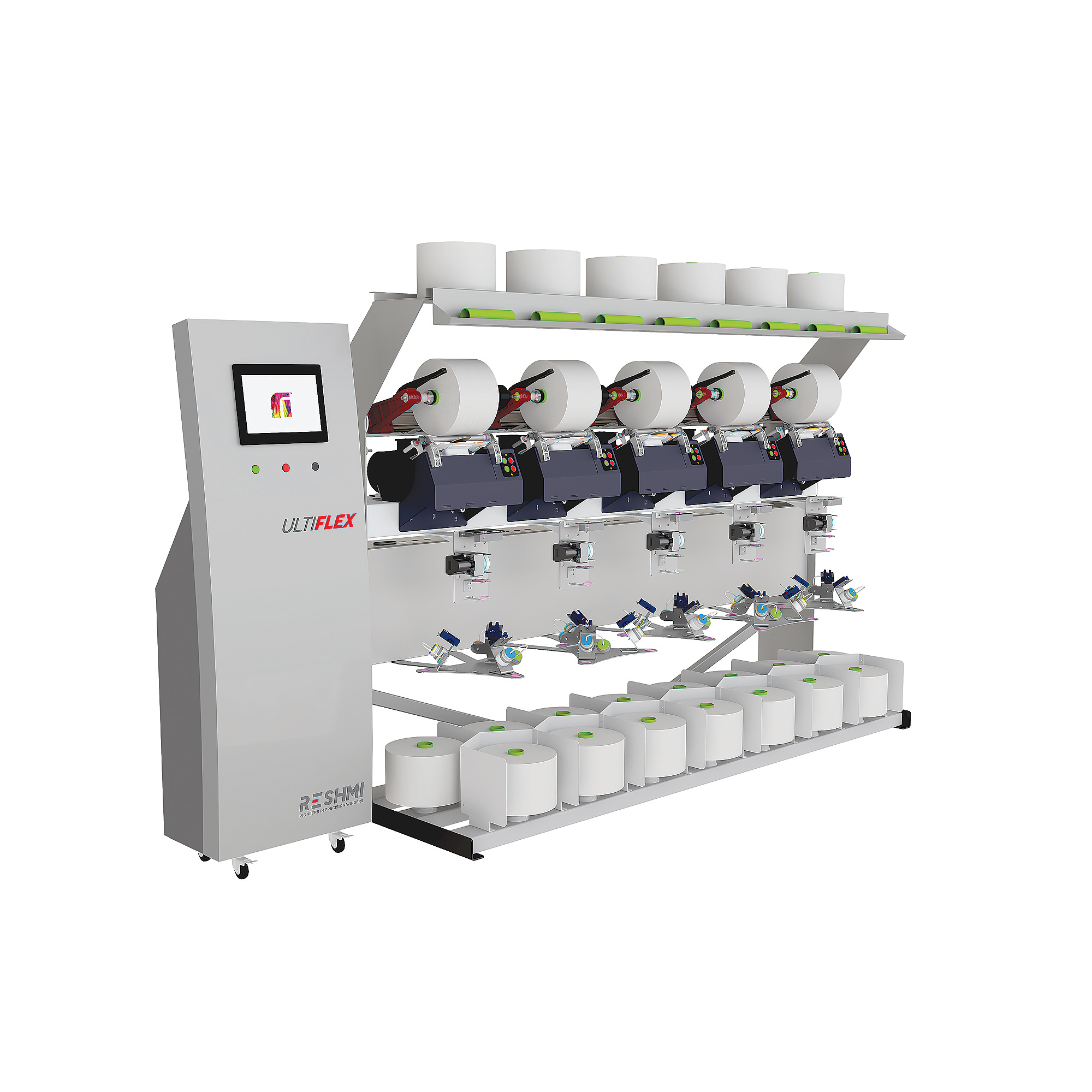

ULTIFLEX TGAW
Precision Assembly Winder
The Ultiflex TG-AW is a precision engineered Assembly winding machine designed for processing a wide range of yarn types including staple fibres and filament yarns. The machine ensures consistent winding quality and obtain packages with the highest possible density and lowest number of breaks, so as to increase the efficiency during the subsequent twisting phase.
| Highlights |
|---|
| Modular Structure |
| Precision and Dynalfex Winding Technology |
| Electronic Yarn Guide System |
| Electro Magnetic Tension Device |
| Pneumatic Back Pressure System |
| Touch Screen Industrial Pc to control all Paramaters |
| IOT Ready |
| Technical Data | |
|---|---|
| Type of Winding | Precision |
| Mechanical Speed | up to 1500 m/min |
| Package Shape | Freely Programmable |
| Traverse length | 25-210mm Electronically Adjustable |
| Take up Tubes | Cylindrical or cones upto 5 57' |
| Package Weight | 5 Kg |
| Yarns | Staple Yarns and textured filament yarns |
| Yarns Count Range | Ne 2 to 200, Dtex 30 to 4000 |
| Layout | Single Side or Double Sided |
| No of Spindles per Section | 5/10 Single Side/Double Sided |
| No of Spindles Max | 100 |
| Gauge | 488 mm |
| Drive | Individual |
| Installed power | 300VA |
| Power Consumption | 100-200 VA |

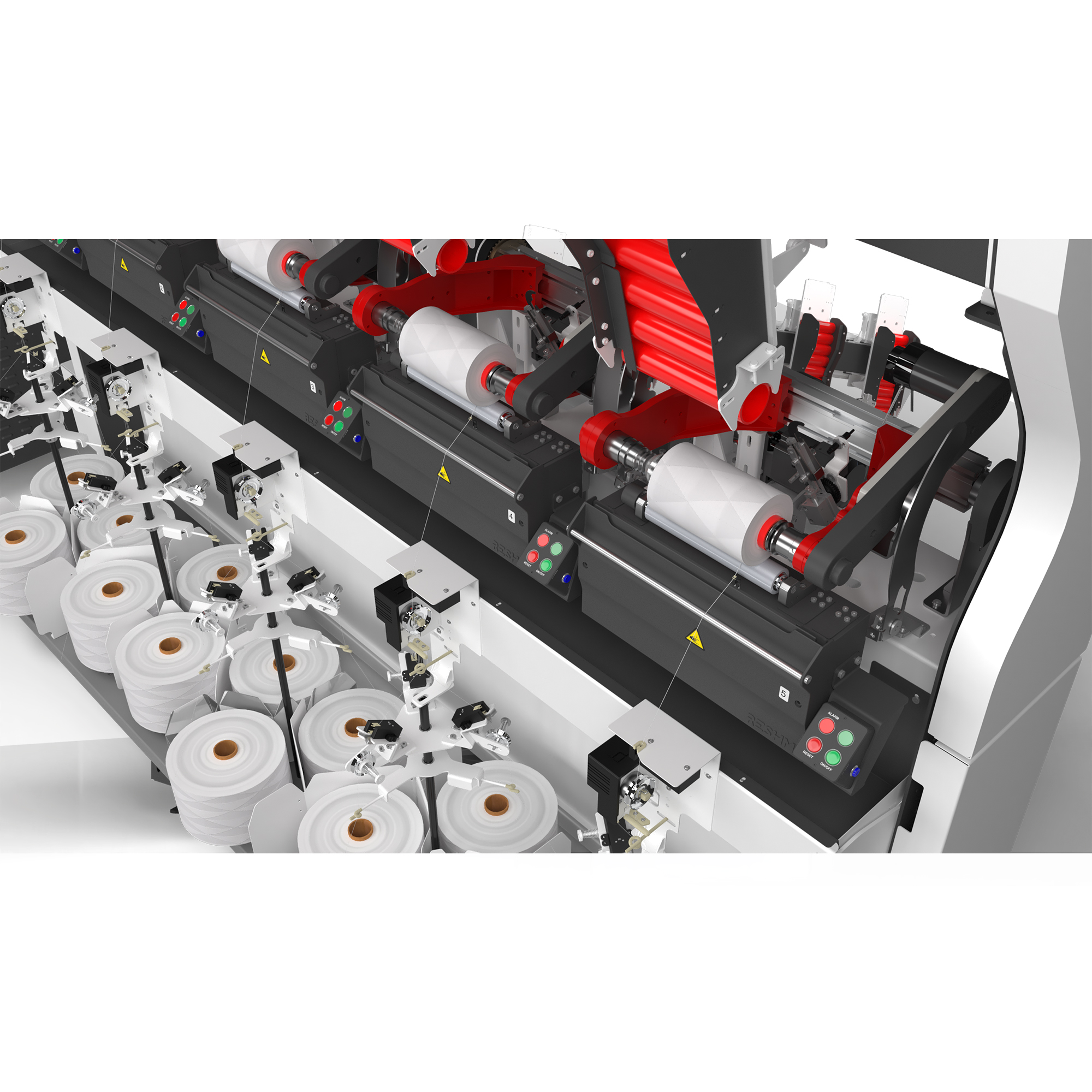

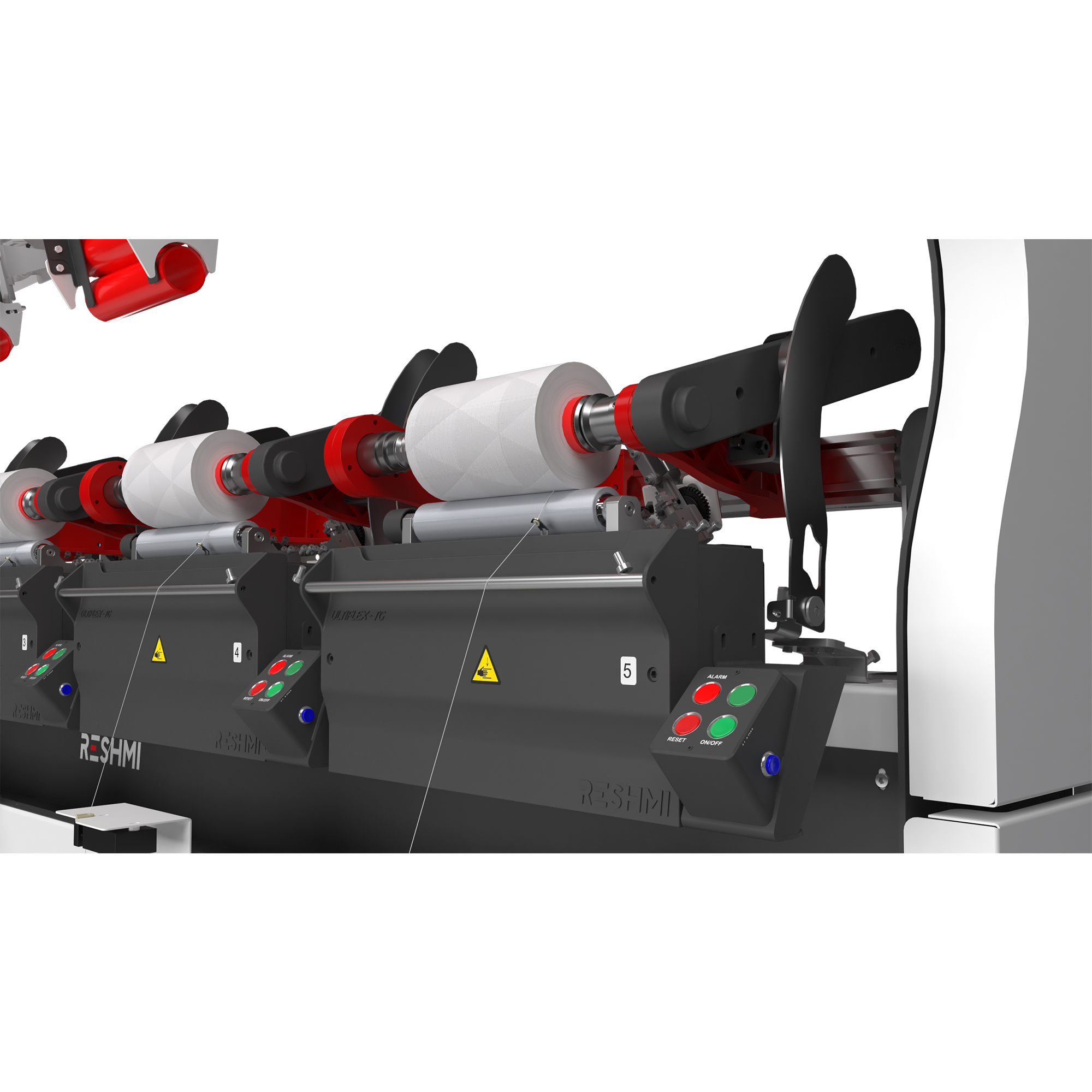

Reshmi’s new ULTIFLEX ADAW is the Latest Modular Winding Platform available with three winding Modes.Step Precision, precision and Fix angle (Random). suitable to wind all Staple Fibres
| Technical Data | |
|---|---|
| Yarns Processed | Natural Fibre,Synthetic or Blended Staple Fibre All Kinds of Staple Yarns |
| Range of Count | From 1 to 250 Nm , 1 to 148 Ne |
| Working Process | Assembly Winding/Parallel Winding suitable for TFO & Ring doubling |
| Winding Speed | Upto 1200 Mt/Min(Process Speed Depending on Process Parameter) |
| Installed Power | 400 W (Per Winding Unit) |
| Absorbed Power | 90 W |
| Take Up Arm | double holders arms with adaptors and black pressure through electronic/ pneumatic system .driven by BLDC motor |
| Yarn laying | Counter Rotating Blade Technology with adjustable blade for traverse lengths. Driven by BLDC Motor |
| Take Up Tubes | Cylindrical/Conical Tubes(6 to 8 inches) |
| tension System | Electro Magnetic Tension Control |
| Standard Configuration | Yarn Presence Sensor For individual ply, centralised electronic yan cutter, Individual Spindle Yarn Lenght,Diameter Setting and measurement |
| Optional Devices | Automatic Doffing , Over Head Travelling Cleaner, Splicer, Pre-Arrangement for Electronic Clearers Package, Transport Conveyor |
| Type of Winding | Step Precision/Precision/Random |
| Dimension(LxWxH) | 2360x1650x1655 |

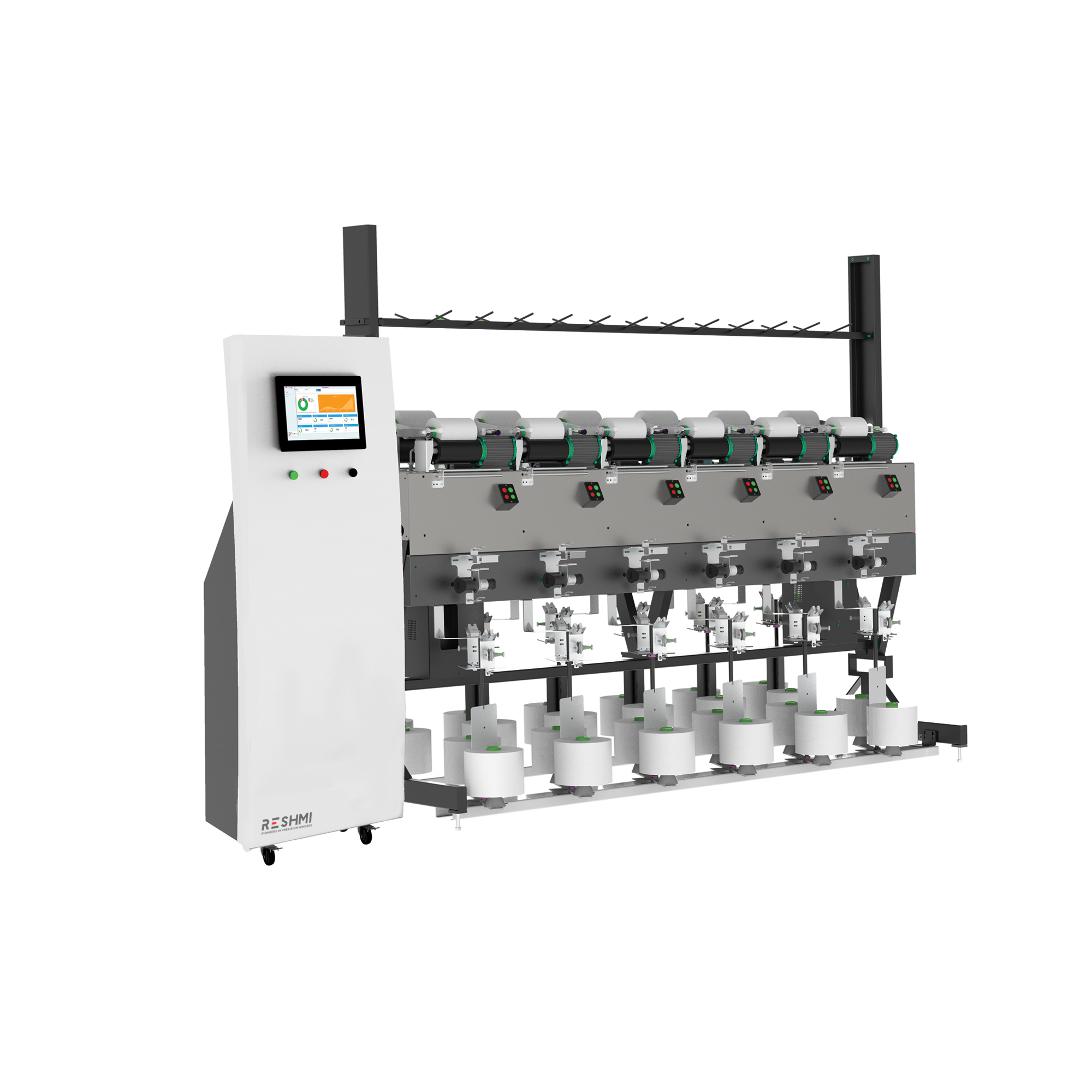

39 Series - ARAW
Random Assembly / PARALLEL Winding
39 Series are the most Economical and Efficient Drum winders from Reshmi’s range. The Electronic grooved drum Machines are meant to process all types of staple fiber yarns. Designed for winding speeds up to 1000 m/min, Mechanical Speeds up to 1400 m/mi
| Technical Data | |
|---|---|
| Yarns Type | Short and long - staple spun yarns made from natural and manmade fibre - Parallel Winding |
| Frame | Welded box-section steel frame, with bolted-on sub-frames, double sided |
| Size | 12 spindles minimum, 120 spindles maximum |
| Creel | 2 ply, 3 ply, 4 ply Optional - external creel upto 16 ply |
| Drive | Individual motor per spindle |
| Speed | Upto 1,200 m/min mechanical, practical speed according to the feed package |
| Take-up | Cylindrical packages upto 280 mm dia (Optional -Cone package) Ring doubling cheese |
| Traverse | 6" standard (8" and 10" optional) |
| Installed Power | 110 W per spindle |
| Consumed Power | 45 W per spindle |
| Tension System | Motorised tension device with adjustable disc tensioner |
| Cutter | Central Cutter, electronically triggered |
| Ribbon Breaker | Electronic |
| Length Control | Length setting and measurement available for individual spindle |
| Optional | Over head package Transportation Conveyor |
| Dimension(LxWxH) | 2480x1050X2010 |
